阀门的驱动方式

更新时间: 2022-08-30      点击次数: 3366

阀门的驱动方式

阀门按驱动方式,根据不同的驱动方式可分:

1. 手动:借助手轮、手柄、杠杆或链轮等,有人力驱动,传动较大力矩时,装有蜗轮、齿轮等减速装置。

2. 电动:借助电击或其他电气装置来驱动。

3. 液动:借助(水、油)来驱动。

4. 气动;借助压缩空气来驱动。

四、按压力,根据阀门的公称压力可分:

1. 真空阀:绝对压力<0.1MPa即760mm汞柱高的阀门,通常用mm汞柱或mm   水柱表示压力。

2. 低压阀:公称压力PN≤1.6MPa的阀门(包括PN≤1.6MPa的钢阀)

3. 中压阀:公称压力PN2.5—6.4MPa的阀门。

4. 高压阀:公称压力PN10.0—80.0MPa的阀门。

5. 超高压阀:公称压力PN≥100.0MPa的阀门。

五、按介质的温度分,根据阀门工作时的介质温度可分:

1. 普通阀门:适用于介质温度-40~425℃的阀门。

2. 高温阀门:适用于介质温度425~600℃的阀门。

3. 耐热阀门:适用于介质温度600℃以上的阀门。

4. 低温阀门:适用于介质温度-40~-150℃的阀门。

5. 超低温阀门:适用于介质温度-150℃以下的阀门。

Valve according to the driving mode, according to different driving mode can be divided:



1. Manual: with the help of hand wheel, handle, lever or sprocket, there is human drive, transmission torque is large, equipped with worm gear, gear and other reduction devices.



2. Electric: driven by electric shock or other electrical devices.



3. Hydraulic: driven by (water, oil).



Pneumatic; 4. Powered by compressed air.



Four, according to the pressure, according to the nominal pressure of the valve can be divided:



1. Vacuum valve: absolute pressure < 0.1mpa, that is, 760mm mercury high valve, usually with mm mercury or MM water column to represent the pressure.



2. Low pressure valve: nominal pressure PN≤ 1.6mpa valve (including PN≤ 1.6mpa steel valve)



3. Medium pressure valve: nominal pressure PN2.5-6.4mpa valve.



4 high pressure valve: nominal pressure PN10.0-80.0MPa valve.



5. Ultra high pressure valve: nominal pressure PN≥100.0MPa valve.



Five, according to the temperature of the medium, according to the valve working medium temperature can be divided:



1. Ordinary valve: suitable for medium temperature -40 ~ 425℃ valve.



2. High temperature valve: suitable for the medium temperature of 425 ~ 600℃ valve.



3. Heat resistant valve: suitable for the medium temperature of 600℃ or above the valve.



4 low temperature valve: suitable for medium temperature -40 ~ -150℃ valve.

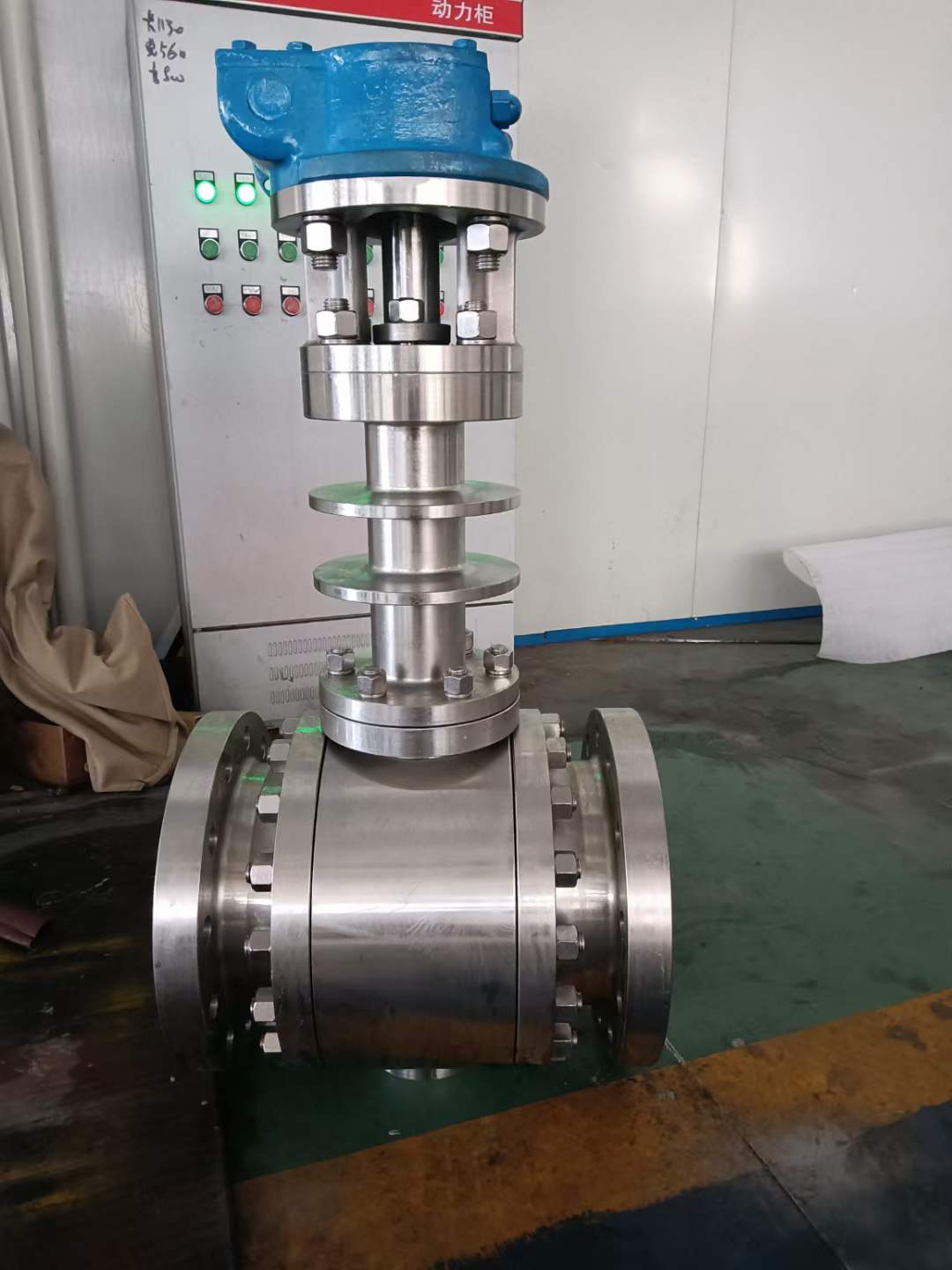

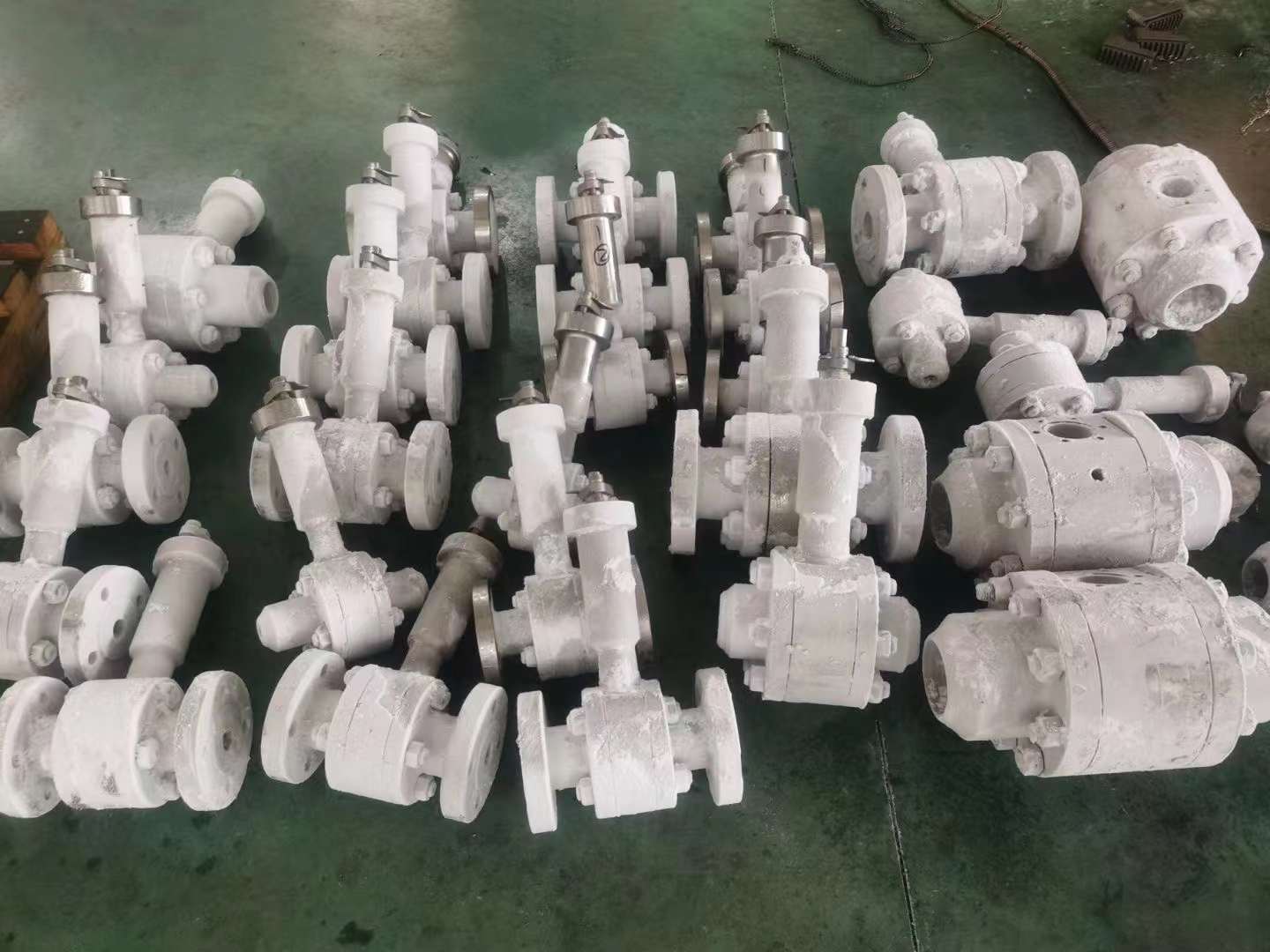

5 ultra-low temperature valve: suitable for the medium temperature below -150℃ valve.低温阀门(cryogenic valve)≥-196°C



高温带散热层阀门(High temperature cooling layer valve) ≤500°C
